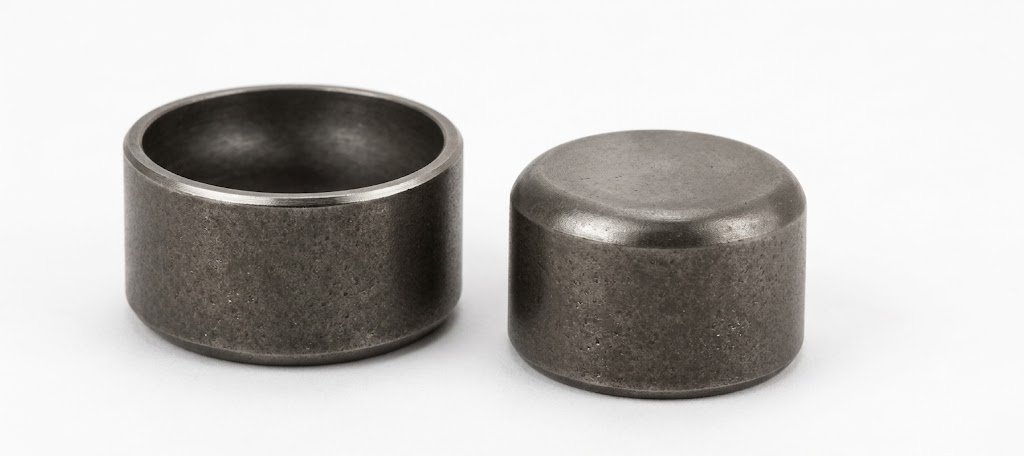

Mild Steel End Cap & Fitting Plugs

✓100% Hydrostatic Proof Tested

🛡️ Manufacturing Quality Backing

✓Mill Test Certificate (EN 10204 3.1) available

✓Hydrostatic proof tested to 2x - 4x burst safety margin

✓ISPM-15 export-compliant seaworthy crating

Technical Specifications & Standards Matrix

Standard engineering parameters. Custom sizing, specialized port threads, and bespoke geometries fabricated upon request.

Specification Parameter	Engineering Value / Rating
Sealing Styles	ED Rubber Seal Ring, Copper Washer, O-Ring Seal, NPT Taper
Thread Standards	Metric M10-M48, BSPP G1/8"-G2", UNF/SAE ORB
Working Pressure	Up to 400 Bar

Engineering Overview & Design Architecture

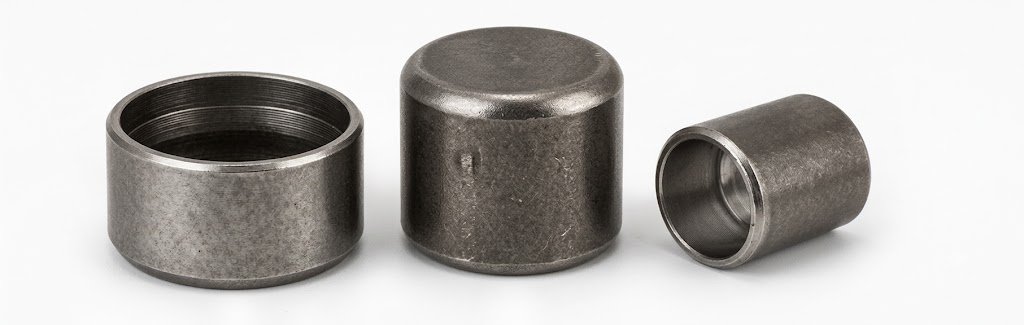

Precision blanking plugs and threaded caps manufactured from solid low-carbon steel. Designed for sealing unused manifold cavities, pressure test ports, and pipe ends during system flushing or operation.

⚡ Key Engineering Features

✓

Flush Hex Socket: Internal hex drive permits flush installation on manifold block surfaces.

✓

Positive Cavity Seal: Integrated elastomeric seal guarantees zero fluid weepage under continuous vibration.

🏭 Target Industry Applications

•Hydraulic Manifolds & Subplates

•Pressure Gauge Isolation Ports

•Cylinder Ports During Transport

Need customized application sizing? Our design engineers calculate hydraulic line velocities, impulse factors, and temperature drop margins to recommend exact wall thickness and crimp specs.
