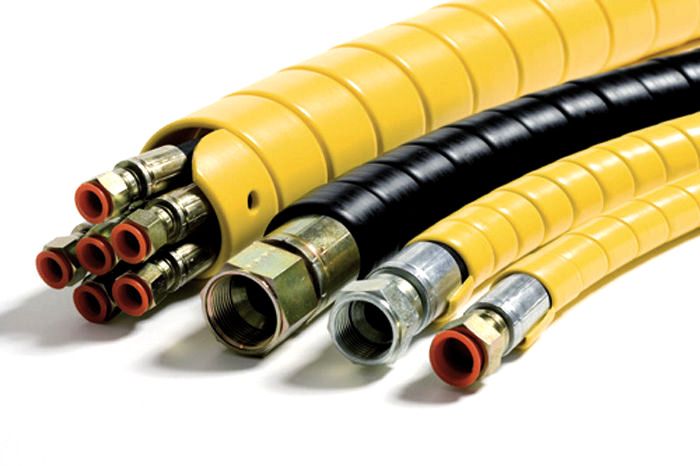

Spiral Hose Pipe
Technical Specifications & Standards Matrix
Standard engineering parameters. Custom sizing, specialized port threads, and bespoke geometries fabricated upon request.
| Specification Parameter | Engineering Value / Rating |
|---|---|
| Working Pressure | 250 to 450 Bar (3,625 to 6,525 PSI) |
| Burst Pressure | Up to 1,800 Bar (26,100 PSI) |
| Temperature Range | -40°C to +125°C (Intermittent to +135°C) |
| Reinforcement | 4 or 6 alternating spiral plies of high tensile steel wire |
| Standard Norms | DIN EN 856 4SH, 4SP, SAE 100R13, SAE 100R15 |
Engineering Overview & Design Architecture
Engineered specifically for ultra-high pressure applications with severe hydraulic shock loads and continuous pressure pulsations. Features four or six alternating layers of spiraled high-tensile steel wire over a synthetic rubber tube, providing unmatched burst strength and structural integrity.
⚡ Key Engineering Features
🏭 Target Industry Applications
Request Commercial Quote for Spiral Hose Pipe
Direct manufacturer pricing, certified technical datasheets & export freight schedules within 2 hours.
