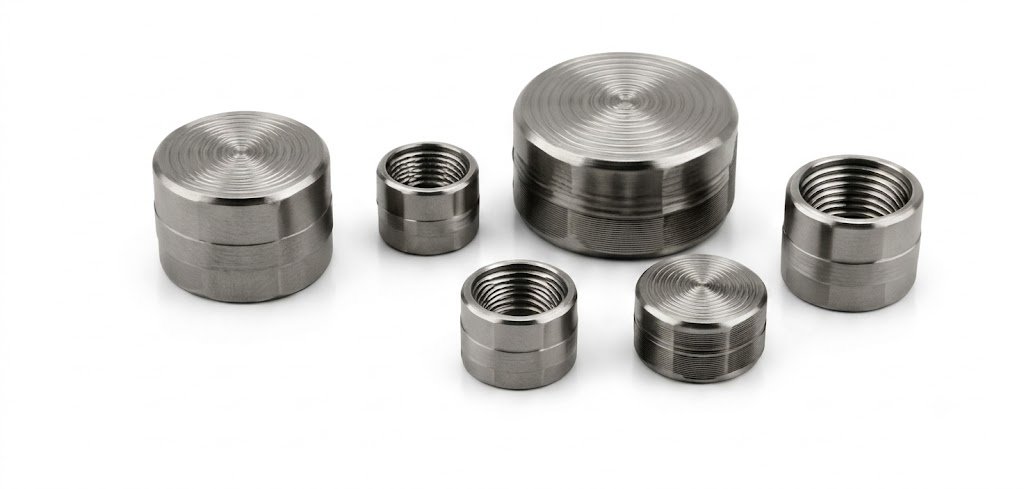

Spiral Non-Skiving Cap & Ferrule
Technical Specifications & Standards Matrix
Standard engineering parameters. Custom sizing, specialized port threads, and bespoke geometries fabricated upon request.
| Specification Parameter | Engineering Value / Rating |
|---|---|
| Hose Compatibility | EN 856 4SH, 4SP, SAE 100R12, SAE 100R13, SAE 100R15 |
| Assembly Method | Direct crimp without external/internal cover skiving |
| Material | Seamless Cold-Formed Low Carbon Alloy Steel |
Engineering Overview & Design Architecture
Engineered with aggressive internal serrations that penetrate the outer rubber cover and bite directly into the high-tensile wire braid without requiring the hose cover to be peeled (skived). Drastically speeds up crimp assembly time while preventing moisture ingress into wire layers.
⚡ Key Engineering Features
🏭 Target Industry Applications
Request Commercial Quote for Spiral Non-Skiving Cap & Ferrule
Direct manufacturer pricing, certified technical datasheets & export freight schedules within 2 hours.
