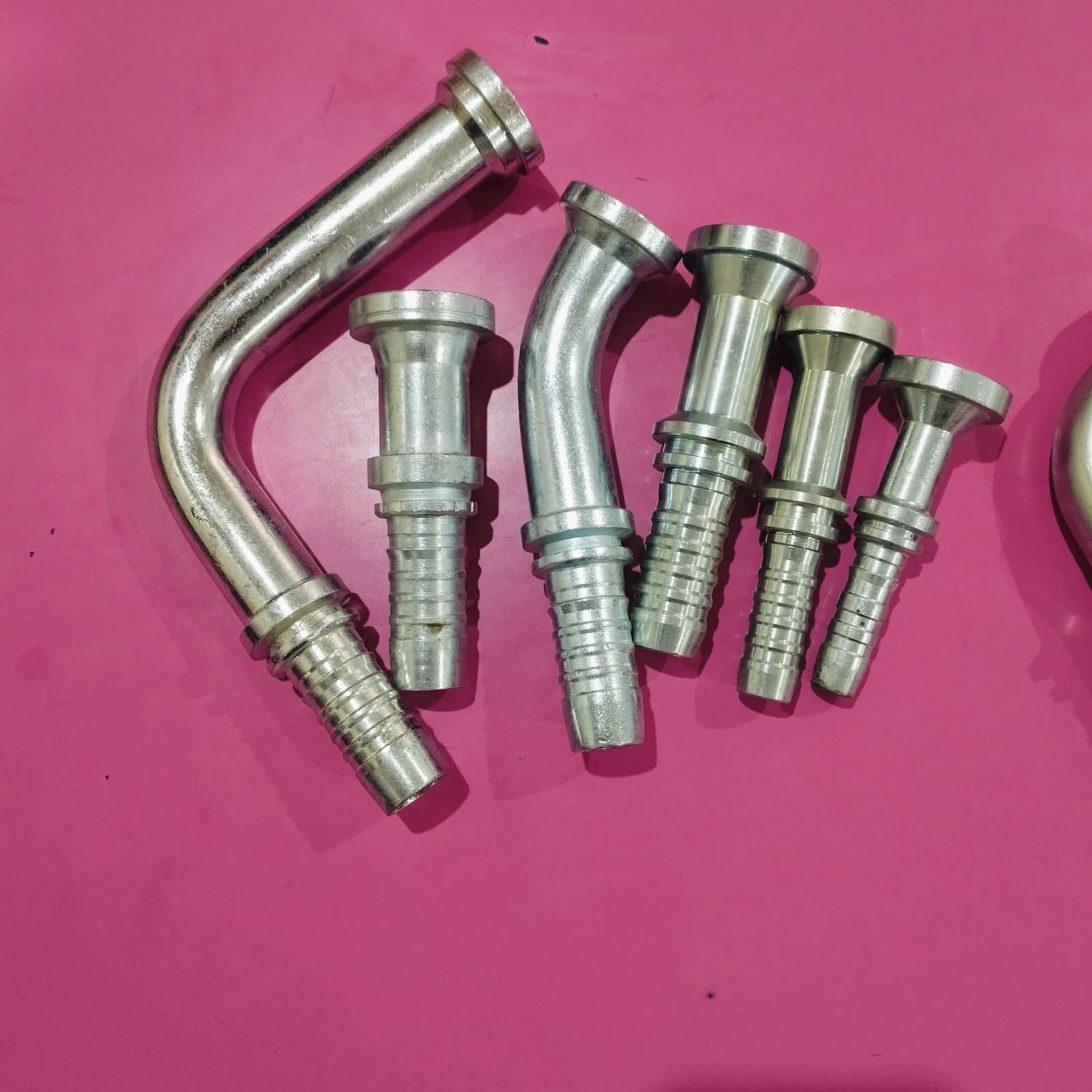

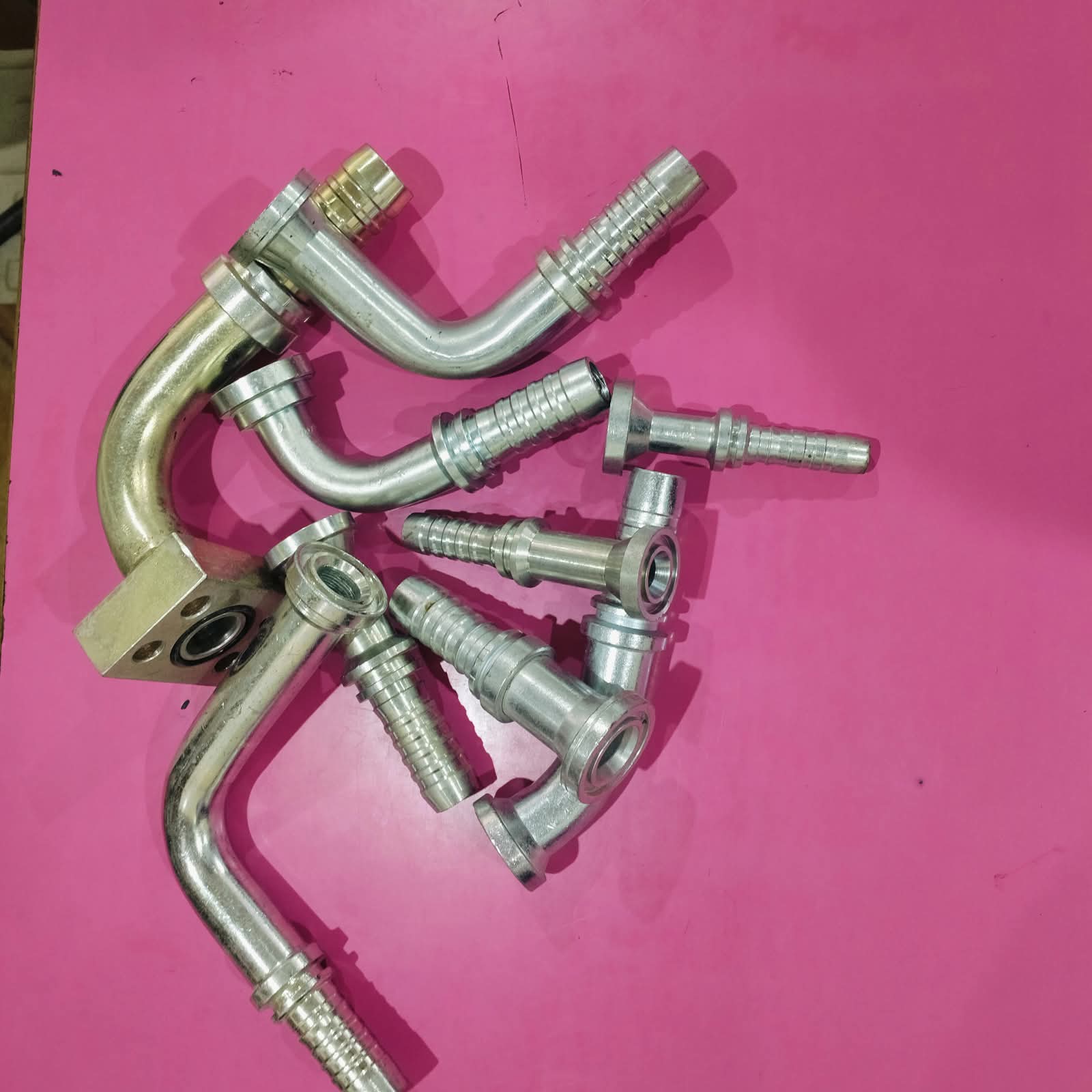

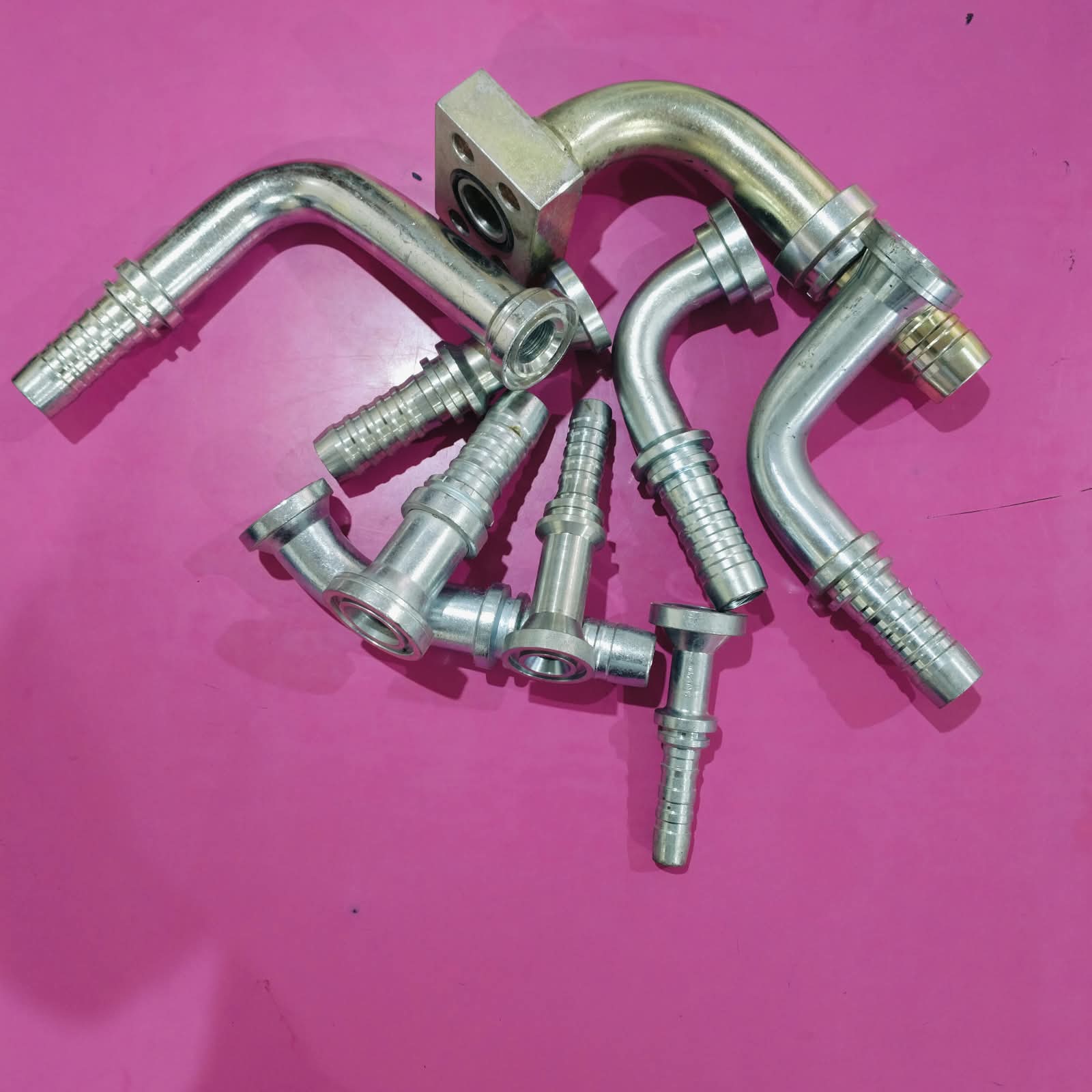

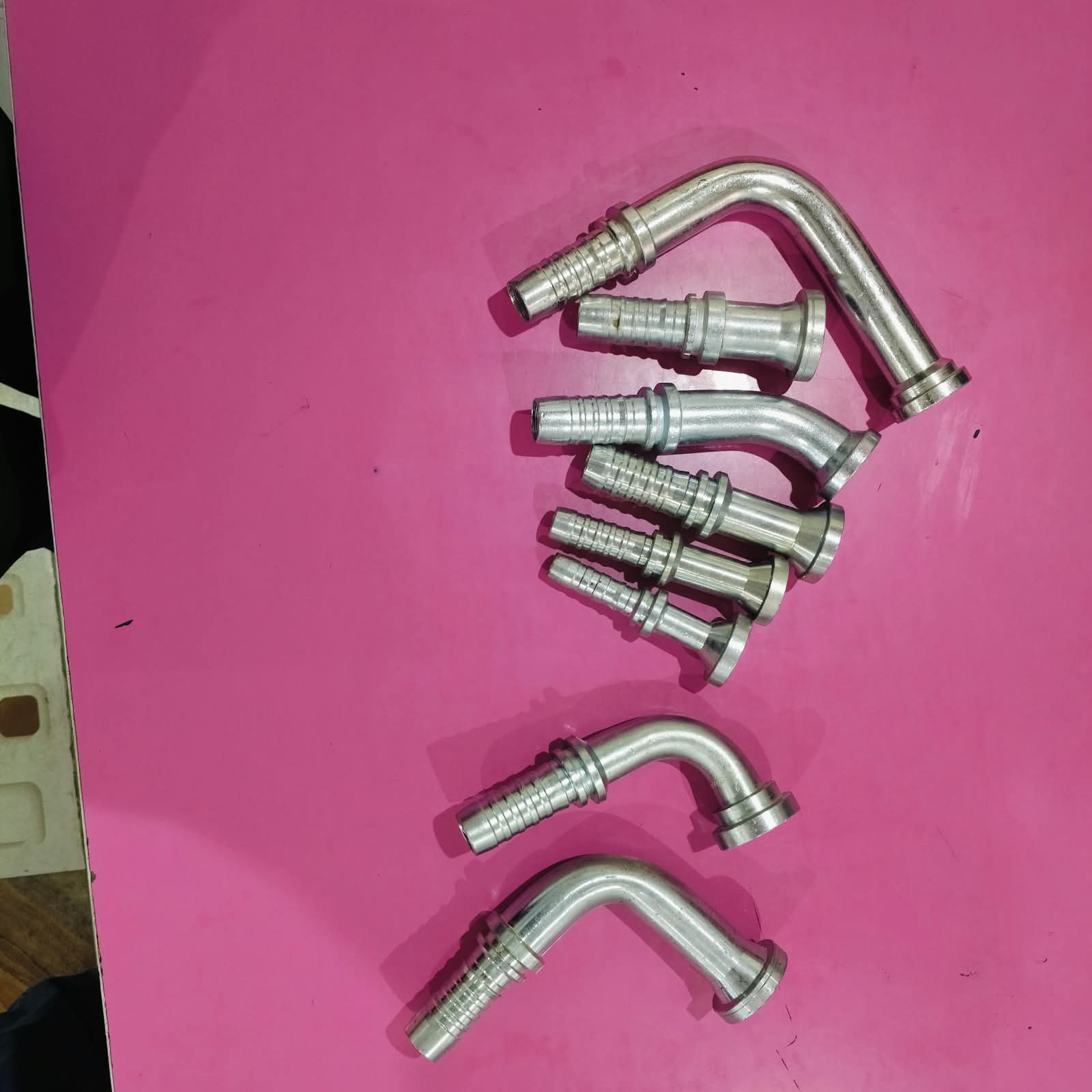

Flanges Pressure SAE 61
Technical Specifications & Standards Matrix
Standard engineering parameters. Custom sizing, specialized port threads, and bespoke geometries fabricated upon request.
| Specification Parameter | Engineering Value / Rating |
|---|---|
| Standard | SAE J518 Code 61 / ISO 6162-1 |
| Flange Sizes | 1/2" to 3" (DN13 to DN76) |
| Pressure Rating | 210 to 350 Bar (3,000 to 5,000 PSI) |
| Sealing | High-durometer Buna-N / Viton O-Ring face seal |
Engineering Overview & Design Architecture
Heavy-duty 4-bolt flange clamping suite for high-flow hydraulic connections. Eliminates large threaded fittings on pump ports and manifold blocks, ensuring easy assembly in tight clearances.
⚡ Key Engineering Features
🏭 Target Industry Applications
Request Commercial Quote for Flanges Pressure SAE 61
Direct manufacturer pricing, certified technical datasheets & export freight schedules within 2 hours.
Related Flanges & Crimping Caps Products
Interchangeable and mating hydraulic components.

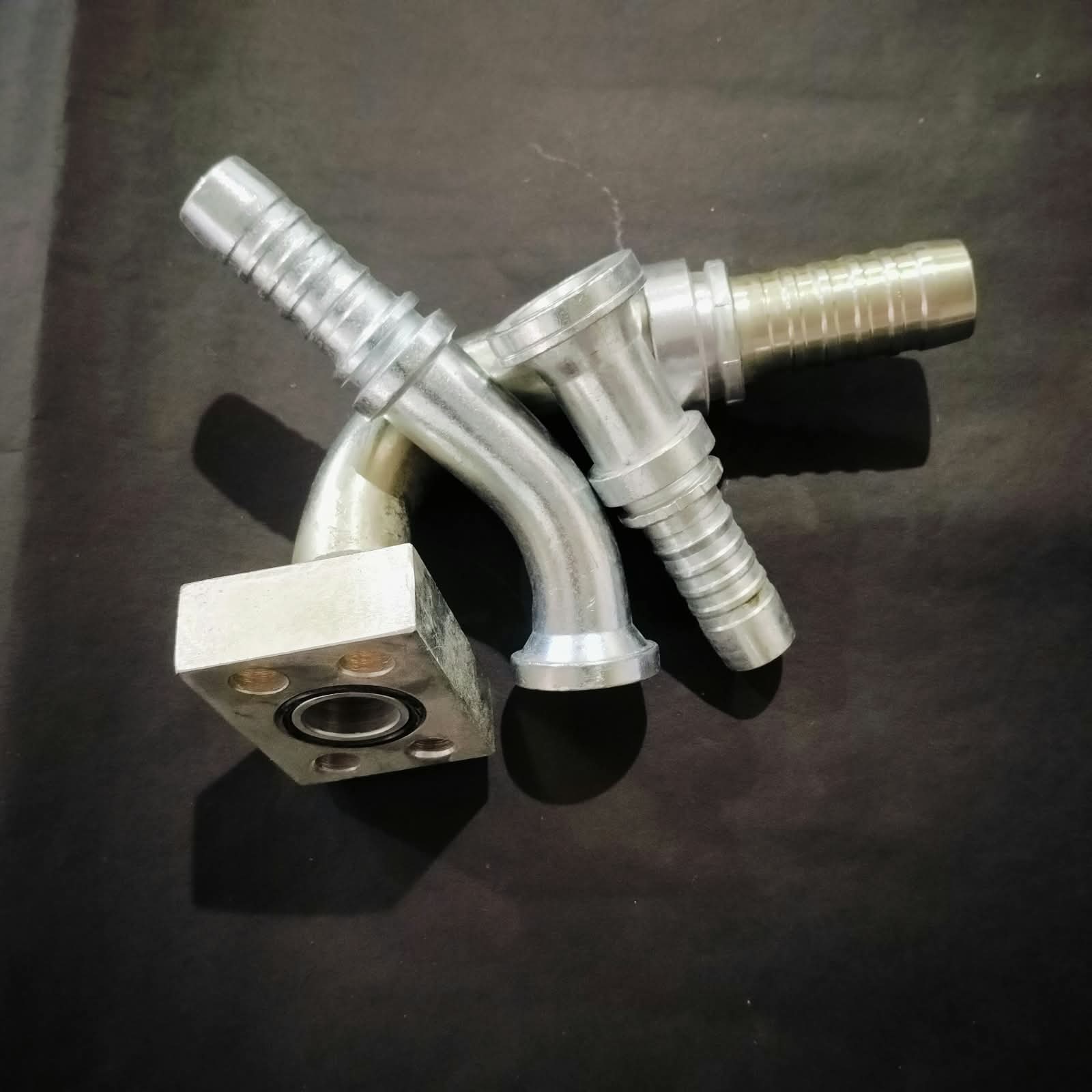

Kobelco Flanges
OEM-spec Kobelco excavator main pump, travel motor, and control block high-pressure custom head flange fittings.

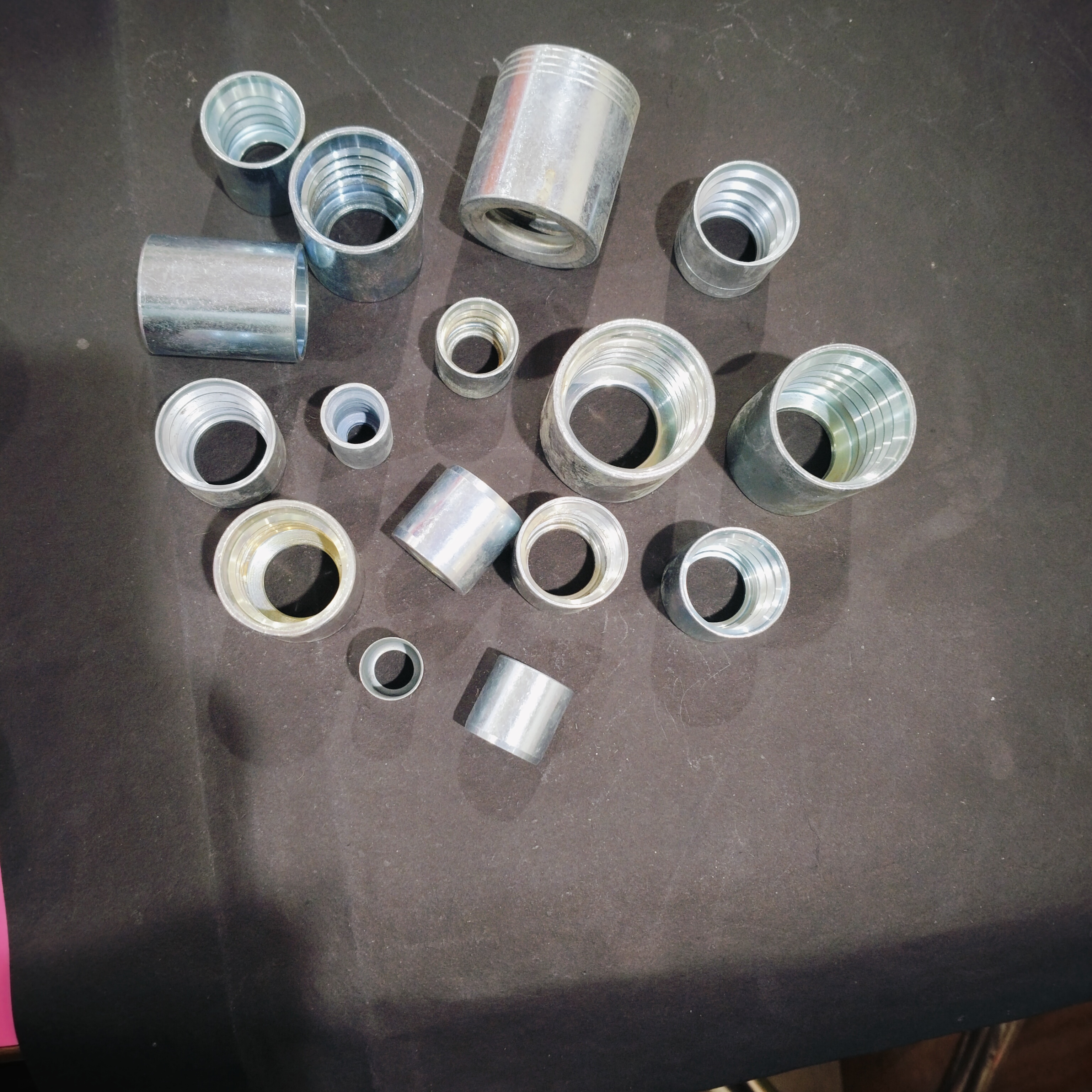

Creeming Caps
