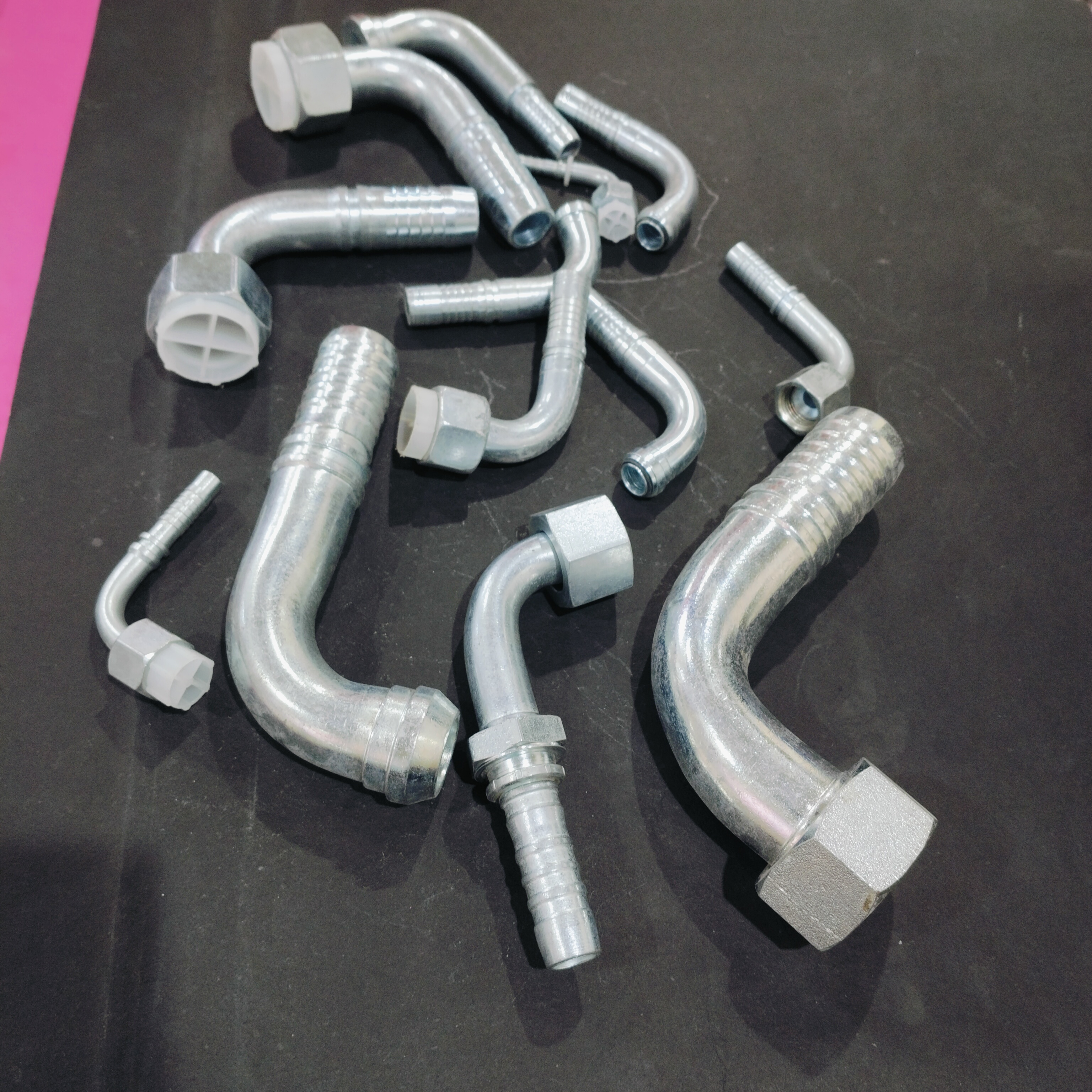

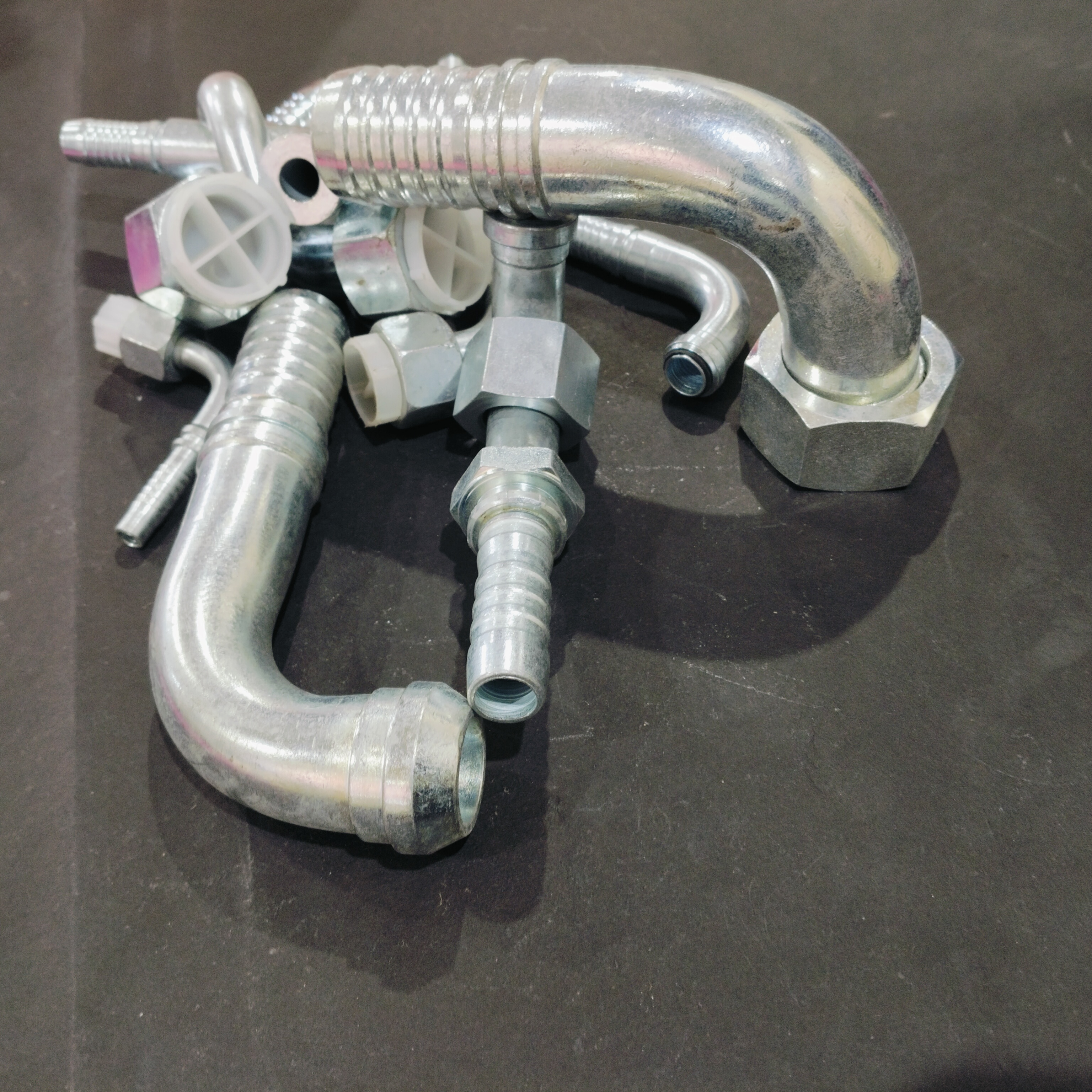

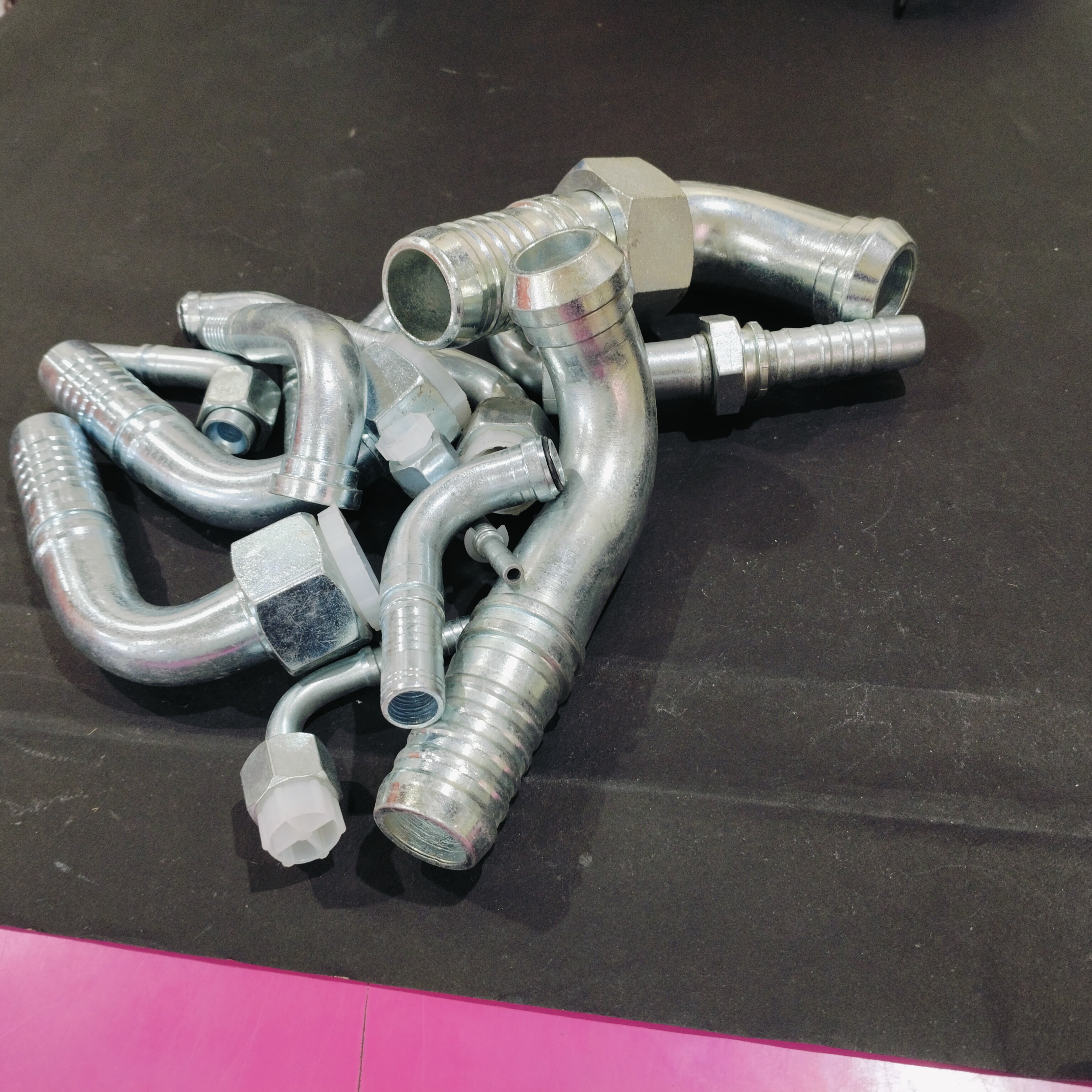

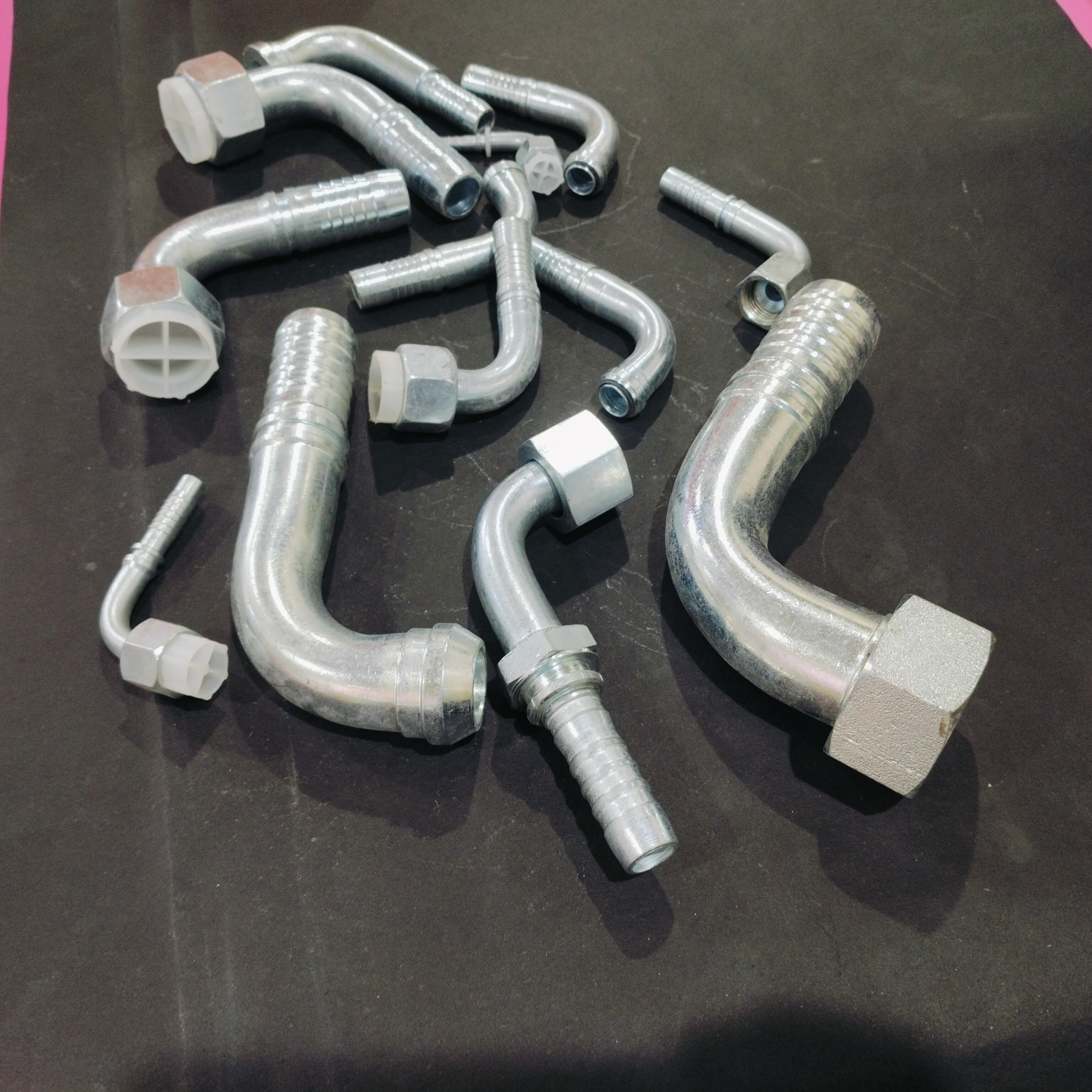

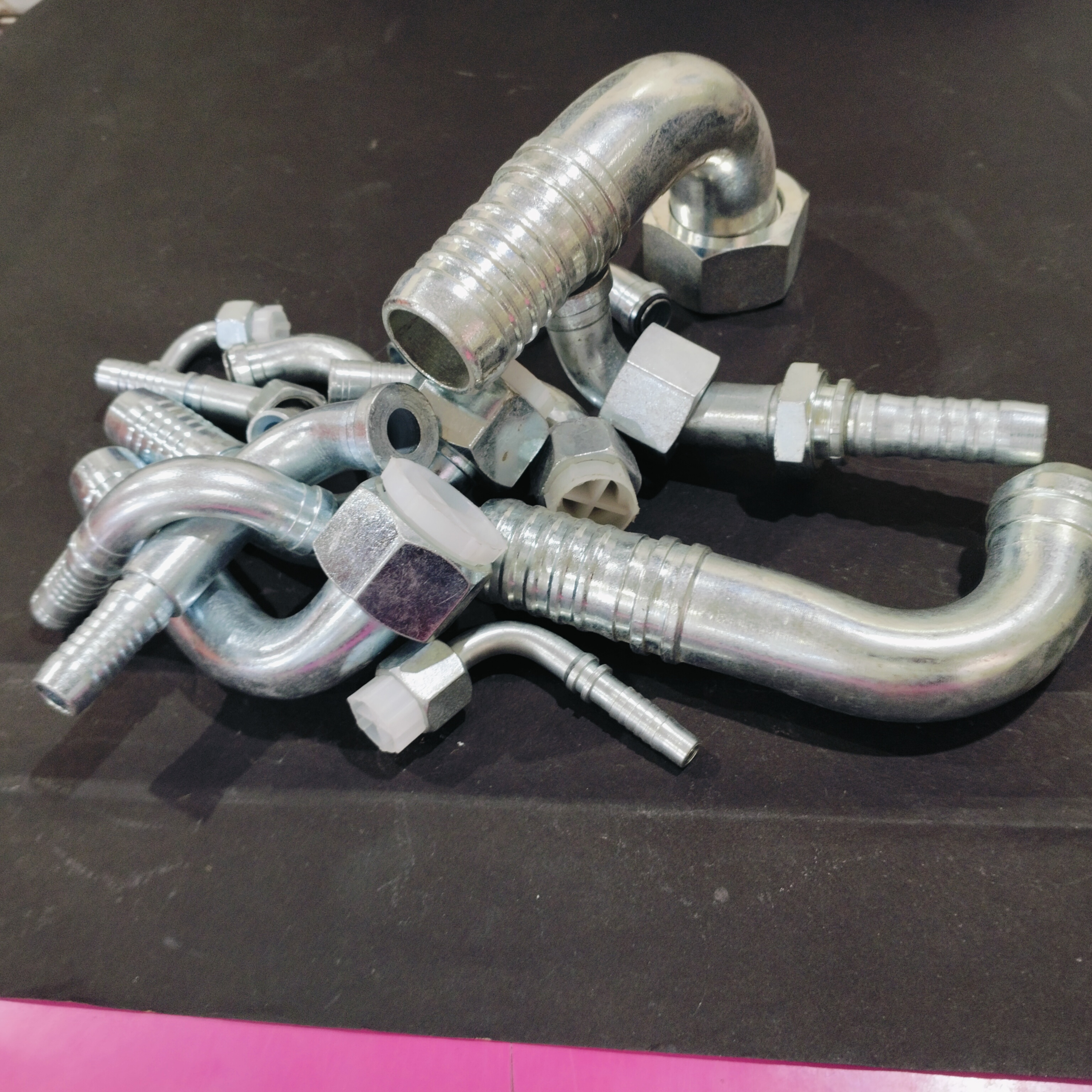

Bends
Technical Specifications & Standards Matrix
Standard engineering parameters. Custom sizing, specialized port threads, and bespoke geometries fabricated upon request.
| Specification Parameter | Engineering Value / Rating |
|---|---|
| Bend Angles | 30°, 45°, 90°, 135°, 180° and custom radius profiles |
| Material | Cold Drawn Seamless Steel (EN 10305-4 / E235N) |
| Surface Plating | Trivalent Zinc-Nickel Electroplating (720h Salt Spray) |
| End Configuration | DIN 2353 24° Cone, O-Ring Seal (DKO), Flanged |
Engineering Overview & Design Architecture
Engineered on multi-axis CNC mandrel tube benders to ensure zero wall thinning or ovality distortion. Ideal for rigid piping circuits where flexible hoses cannot be routed.
⚡ Key Engineering Features
🏭 Target Industry Applications
Request Commercial Quote for Bends
Direct manufacturer pricing, certified technical datasheets & export freight schedules within 2 hours.
Related Fittings, Adapters & Bends Products
Interchangeable and mating hydraulic components.

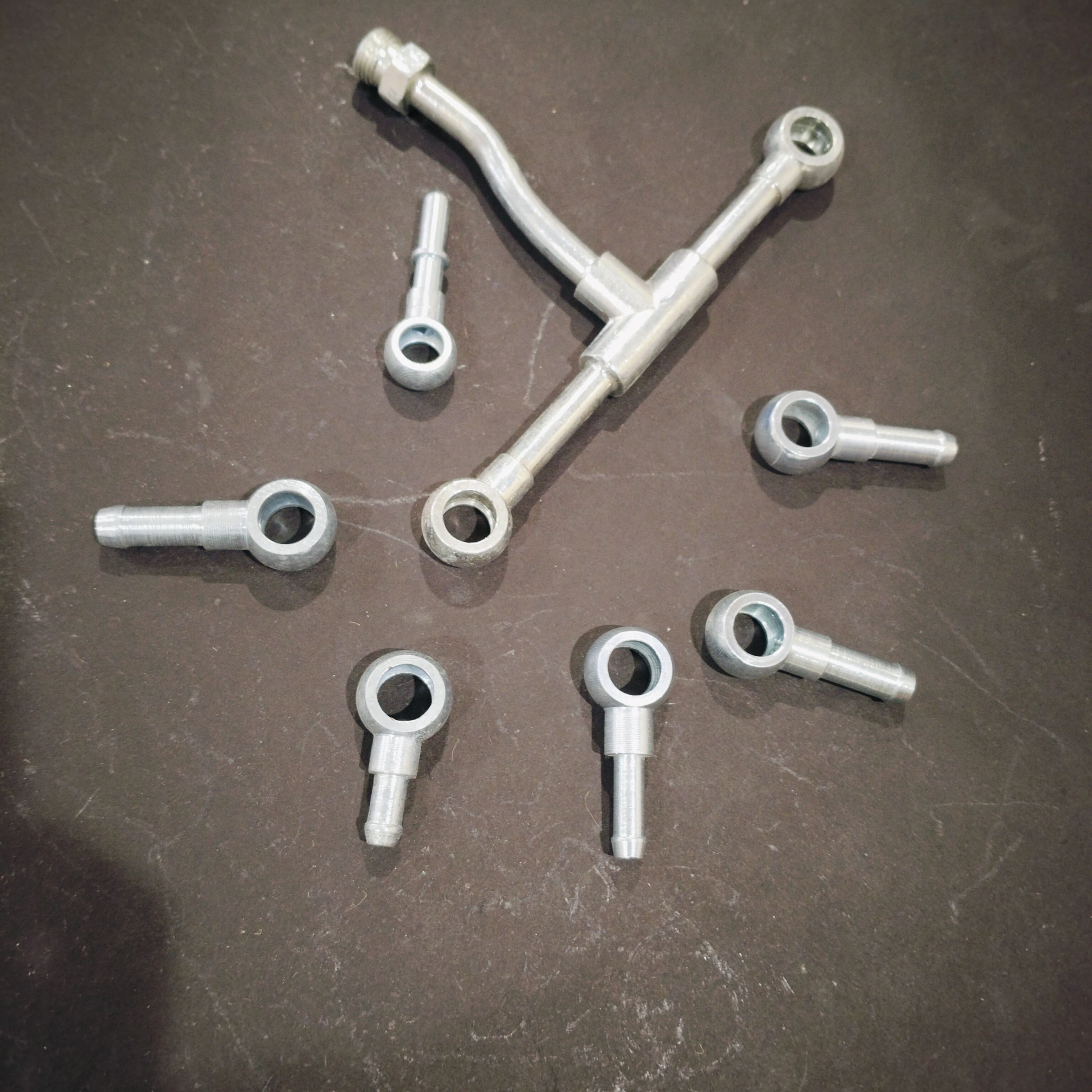

Benjo Fittings
Compact low-profile Banjo bodies and hollow bolt adapters for rotational 360-degree port alignment in cramped hydraulic enclosures.

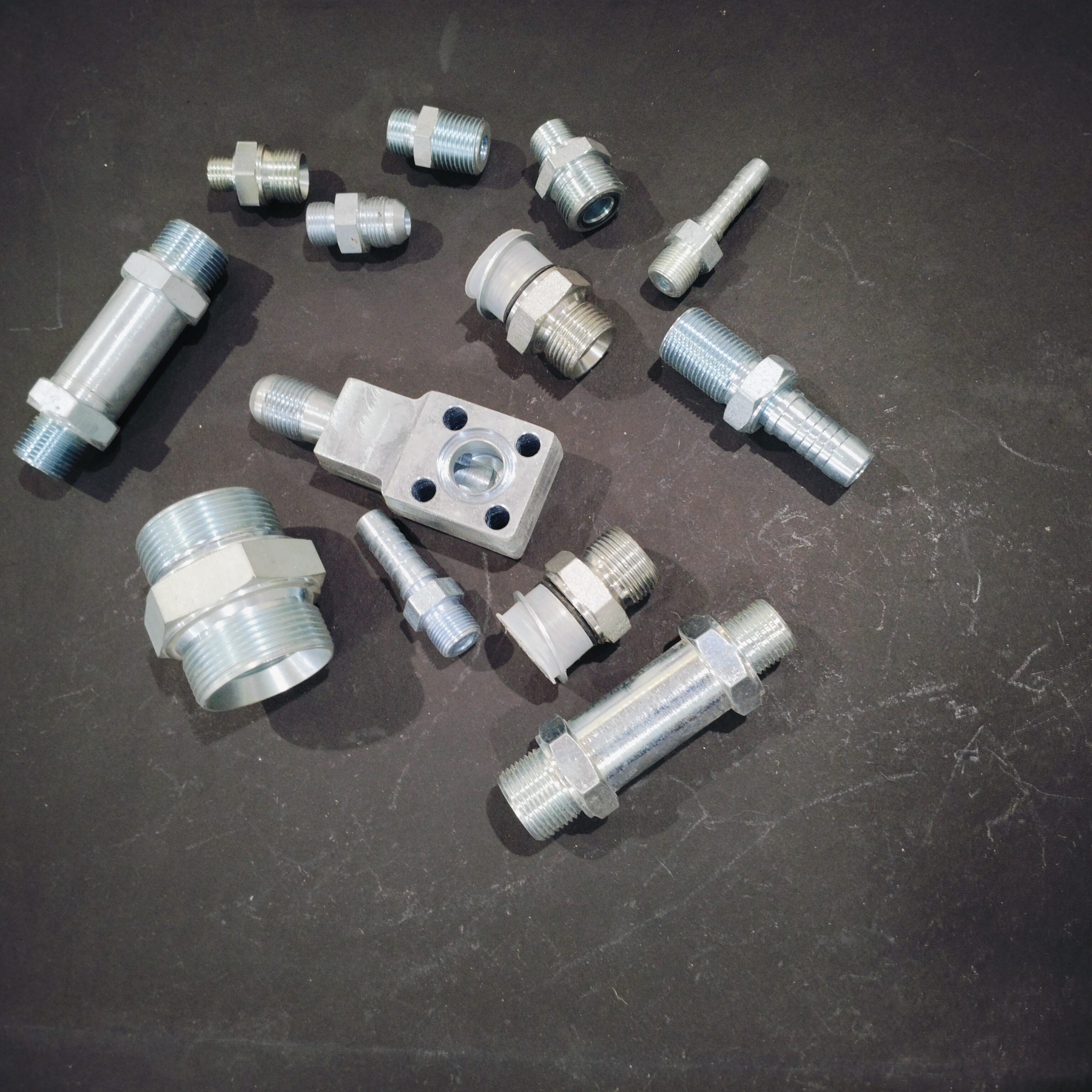

Hydraulic Connectors and Reducer
Direct thread converters, male-female reducing adapters, bulkhead connectors, and equal unions for joining disparate pipe diameters.

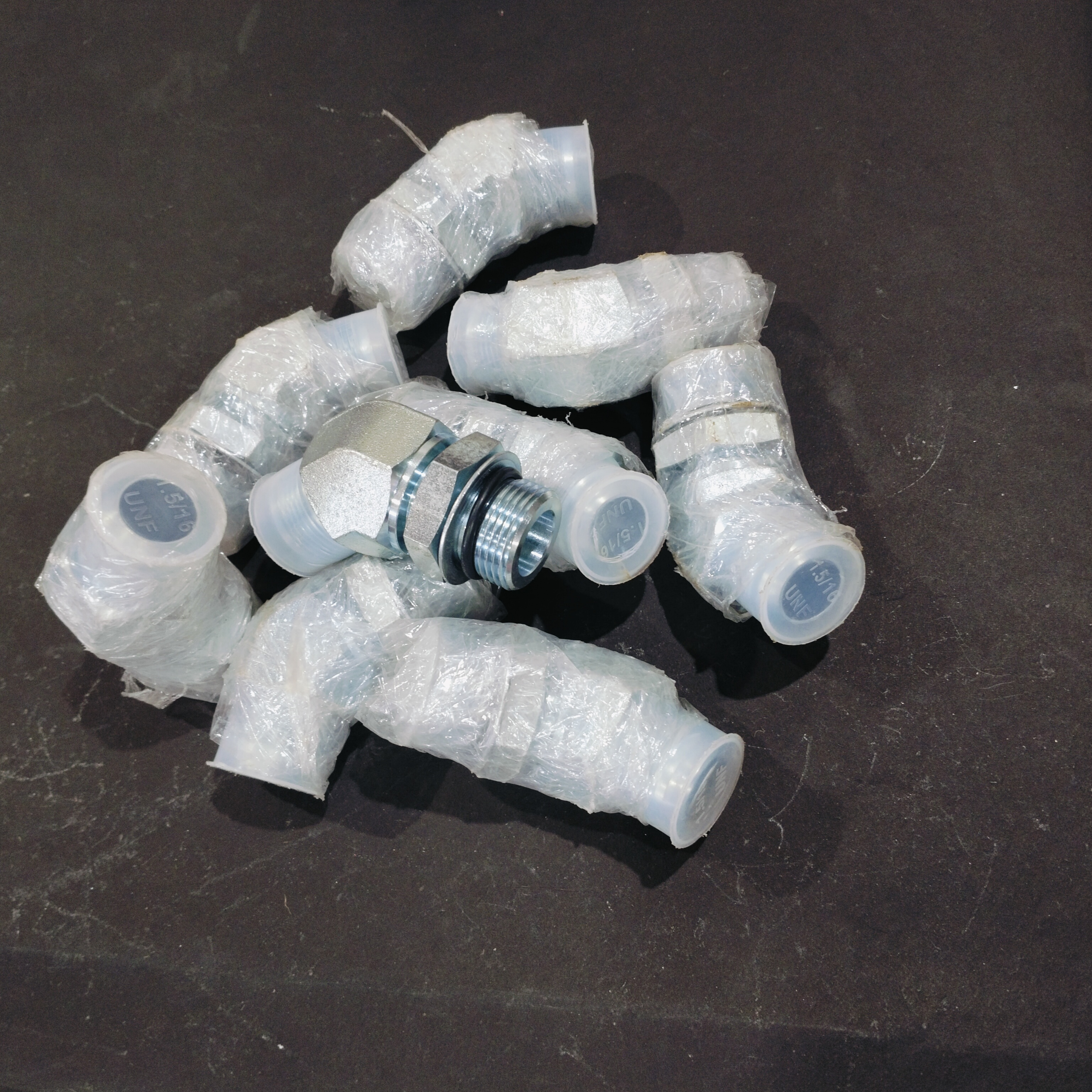

Breaker Adaptors
