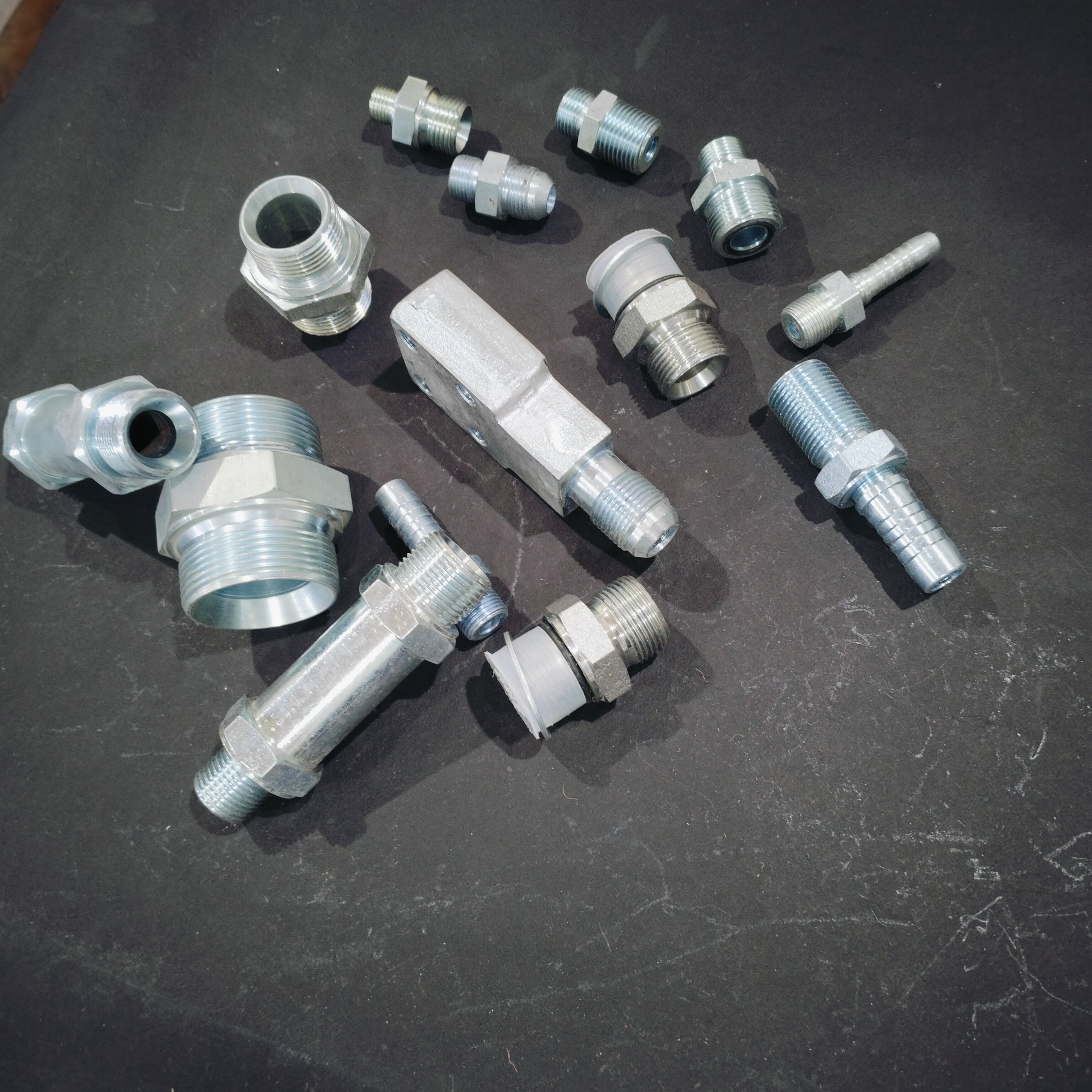

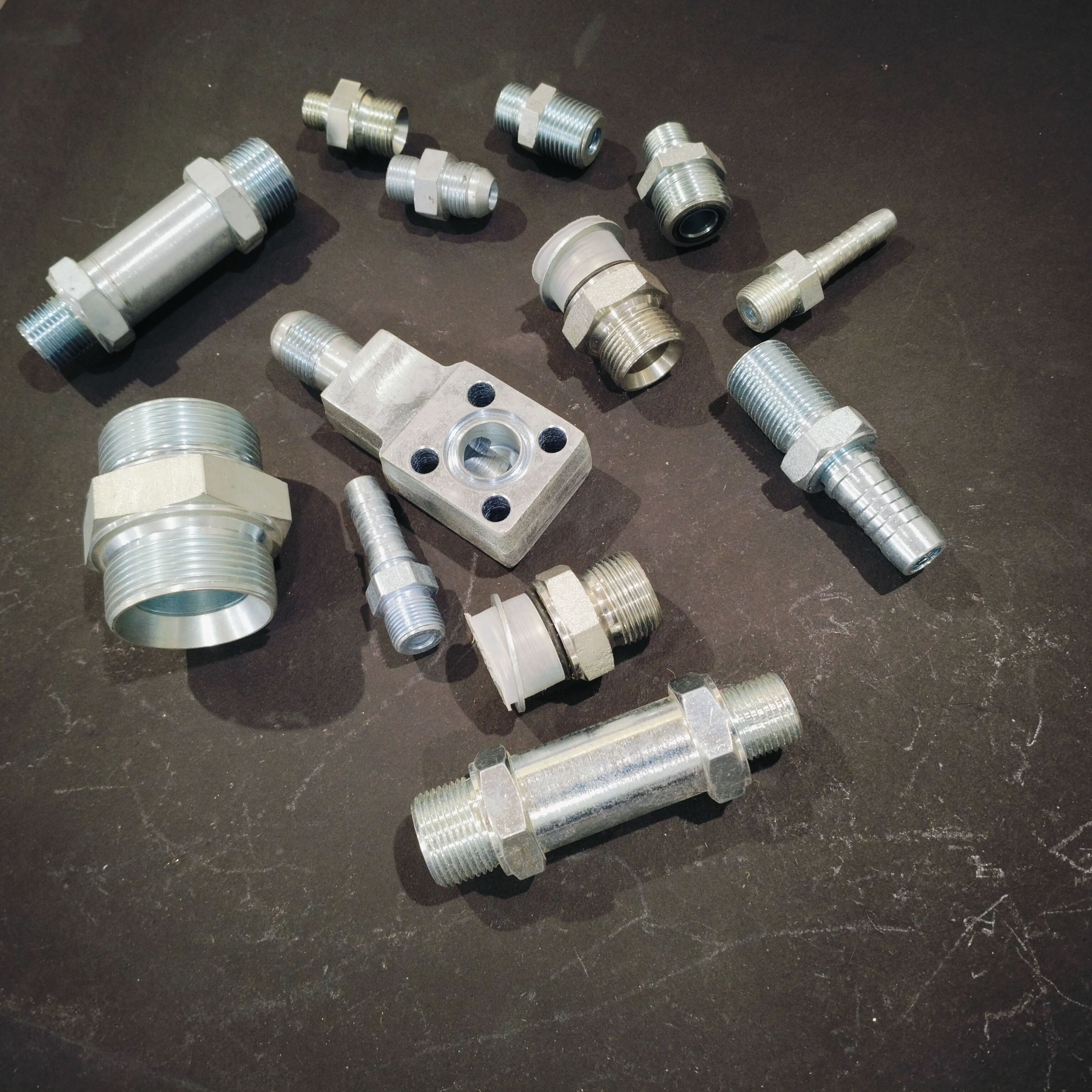

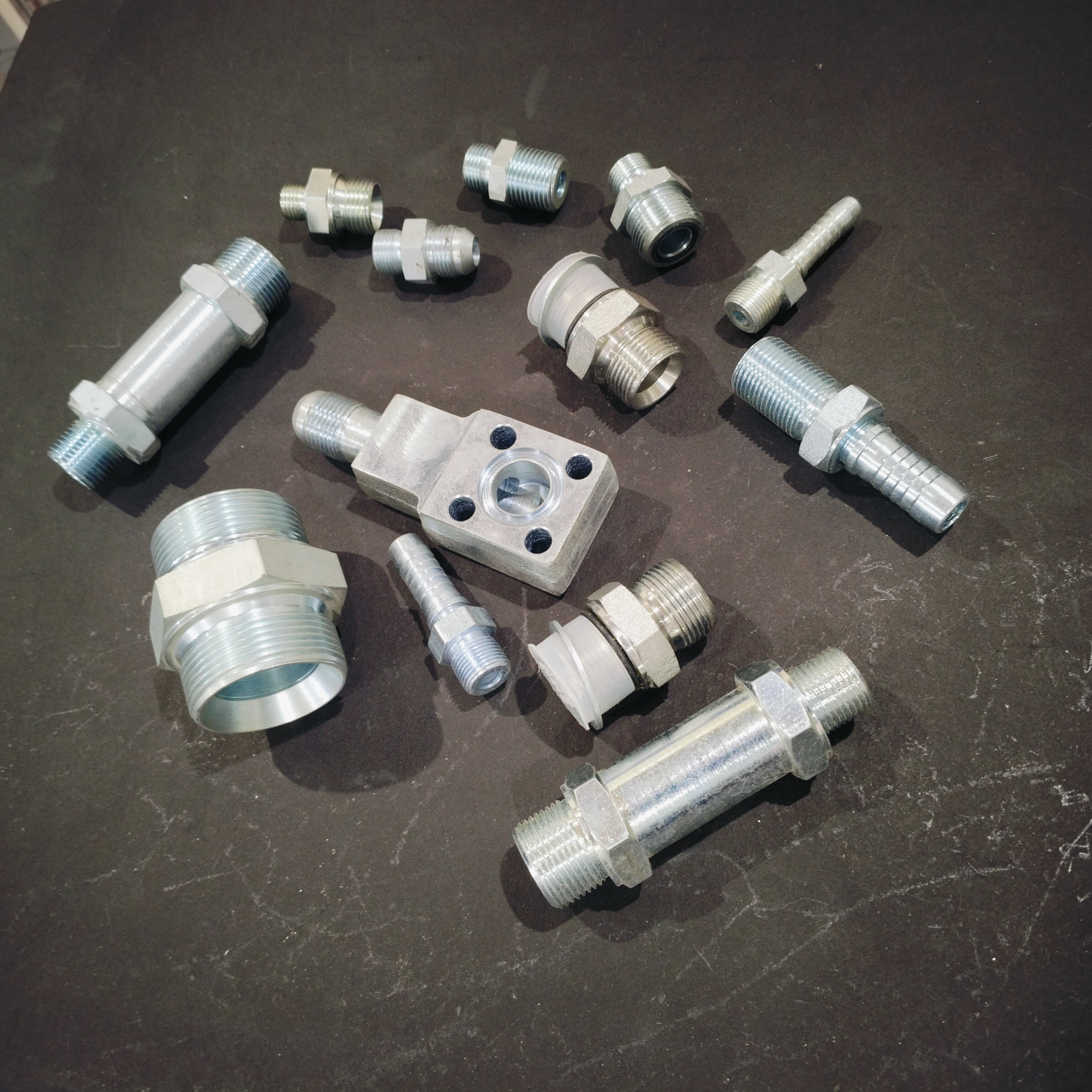

Hydraulic Connectors and Reducer
Technical Specifications & Standards Matrix
Standard engineering parameters. Custom sizing, specialized port threads, and bespoke geometries fabricated upon request.
| Specification Parameter | Engineering Value / Rating |
|---|---|
| Types | Straight Reducer, Elbow Reducer, Bulkhead, Swivel Nut Union |
| Standards | DIN 2353, ISO 8434-1, SAE J514 (JIC 37°), BSP 60° Cone |
| Pressure Rating | Light (L) series up to 315 Bar, Heavy (S) series up to 630 Bar |
Engineering Overview & Design Architecture
High-precision machined adaptors designed to connect hydraulic pipes, hoses, and manifold blocks of varying thread geometries and bore diameters.
⚡ Key Engineering Features
🏭 Target Industry Applications
Request Commercial Quote for Hydraulic Connectors and Reducer
Direct manufacturer pricing, certified technical datasheets & export freight schedules within 2 hours.
