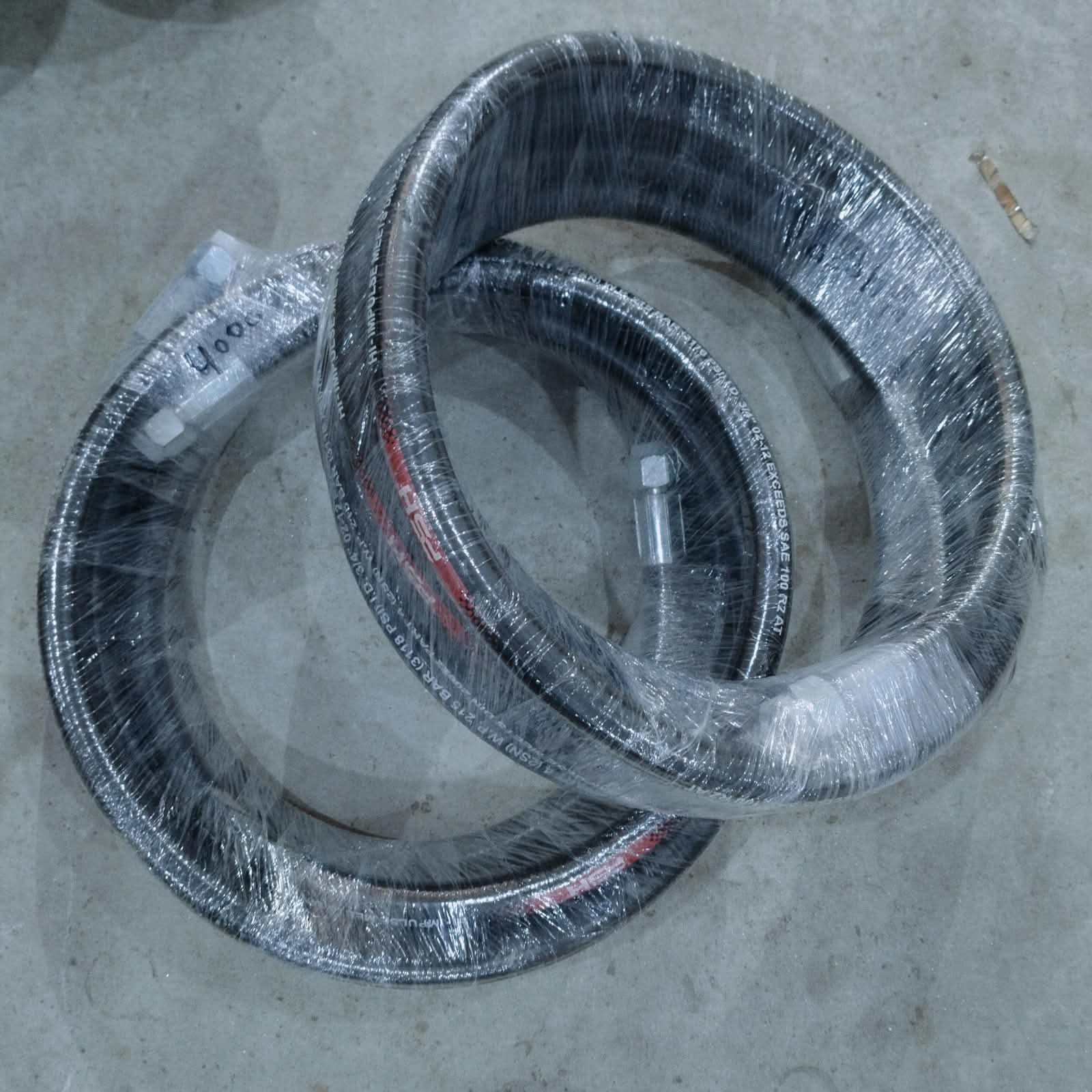

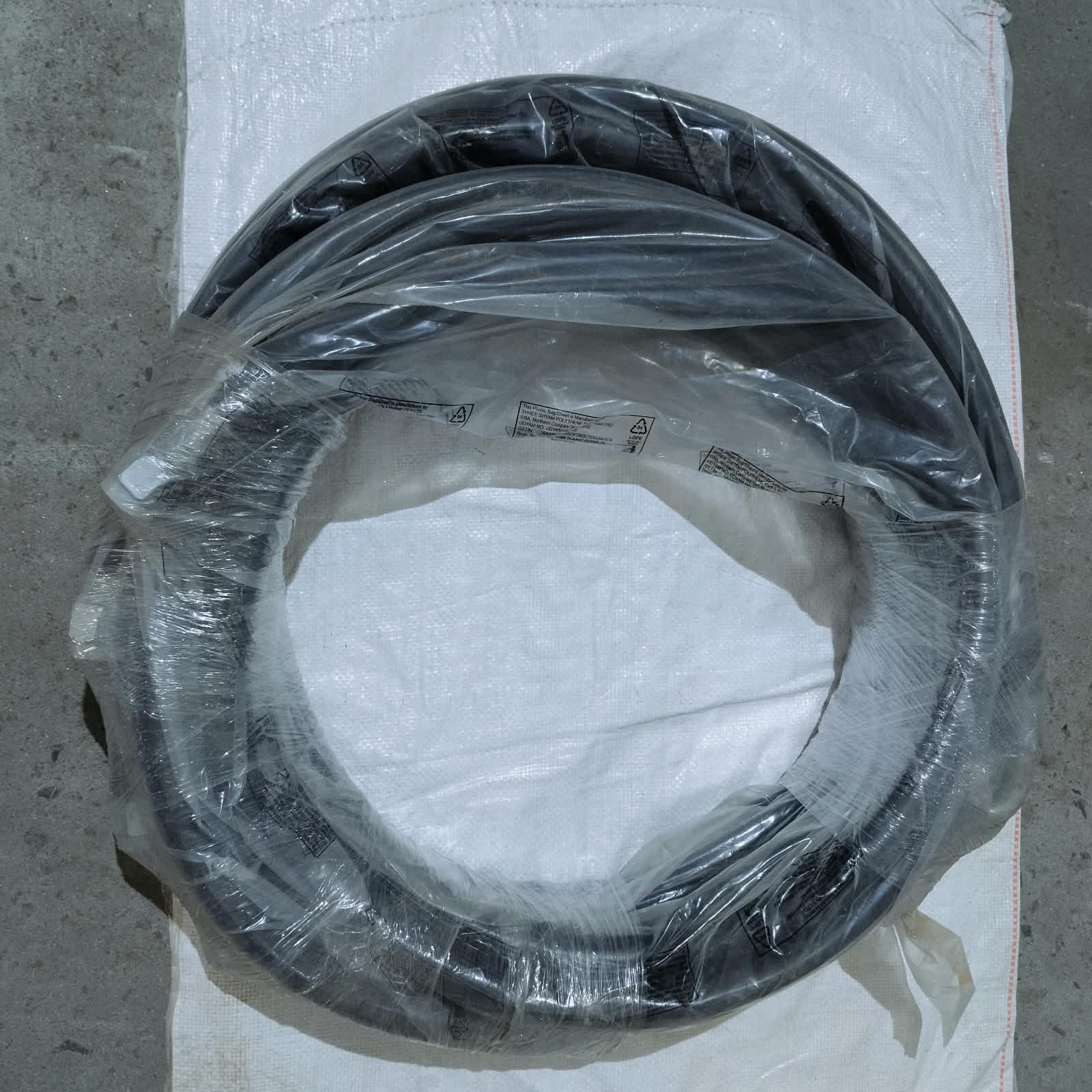

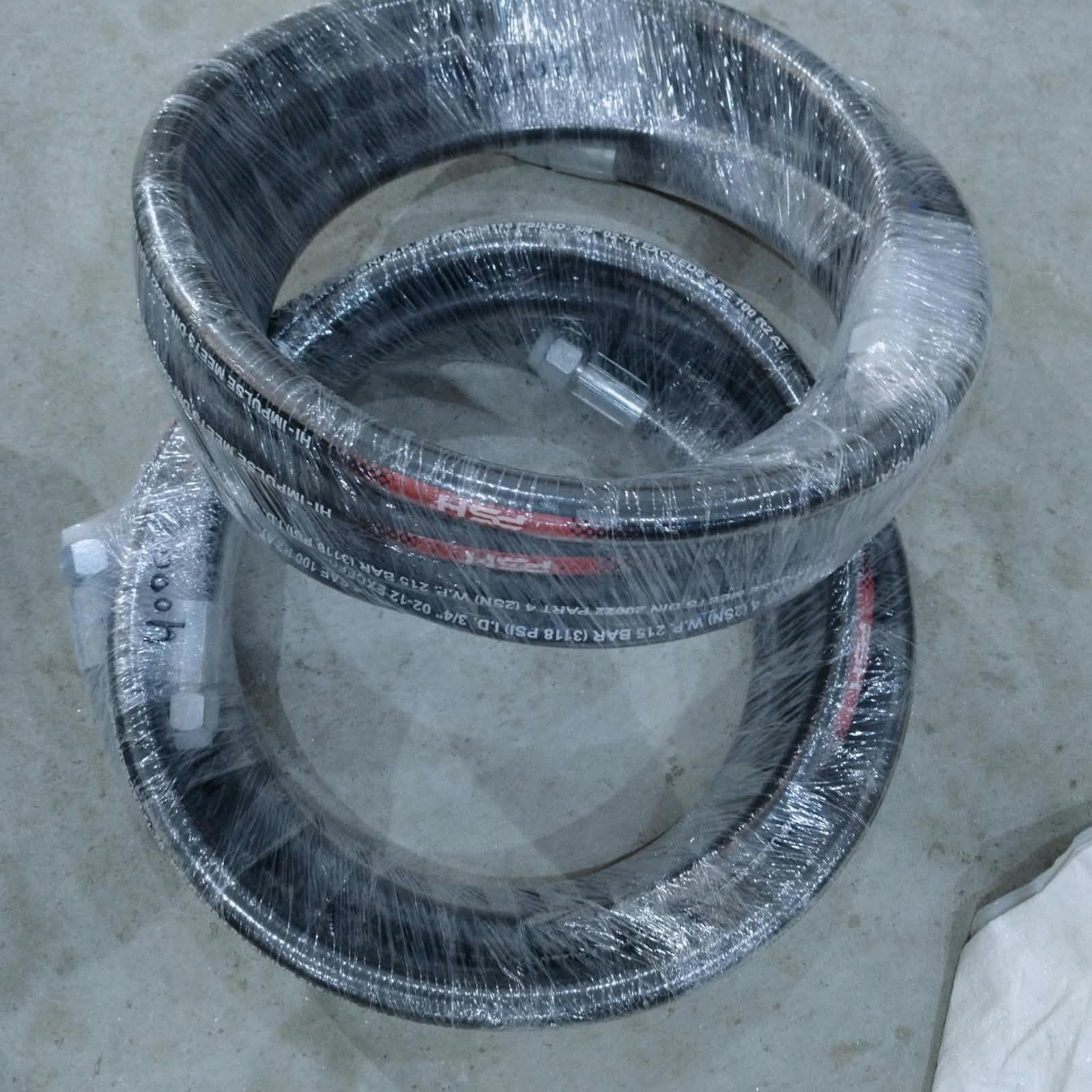

High Pressure Hose Assembly
Technical Specifications & Standards Matrix
Standard engineering parameters. Custom sizing, specialized port threads, and bespoke geometries fabricated upon request.
| Specification Parameter | Engineering Value / Rating |
|---|---|
| Standard Compliance | DIN EN 853 / 856 / 857, SAE 100R1AT - R15 |
| Working Pressure | Up to 700 Bar (10,000 PSI) |
| Temperature Range | -40°C to +125°C (-40°F to +257°F) |
| End Fittings | BSP, JIC, ORFS, Metric DIN, SAE Code 61/62 Flange |
| Reinforcement | 1, 2, 4 & 6 high-tensile steel wire spirals/braids |
Engineering Overview & Design Architecture
PSH High Pressure Hose Assemblies are engineered for high impulse cycles, extreme shock resistance, and zero leakage in severe mining, earthmoving, and industrial applications. Built with premium inner tubes, high-tensile multi-spiral wire reinforcement, and factory hydrostatically tested up to 700 Bar.
⚡ Key Engineering Features
🏭 Target Industry Applications
Request Commercial Quote for High Pressure Hose Assembly
Direct manufacturer pricing, certified technical datasheets & export freight schedules within 2 hours.
Related Hose & Hose Assemblies Products
Interchangeable and mating hydraulic components.

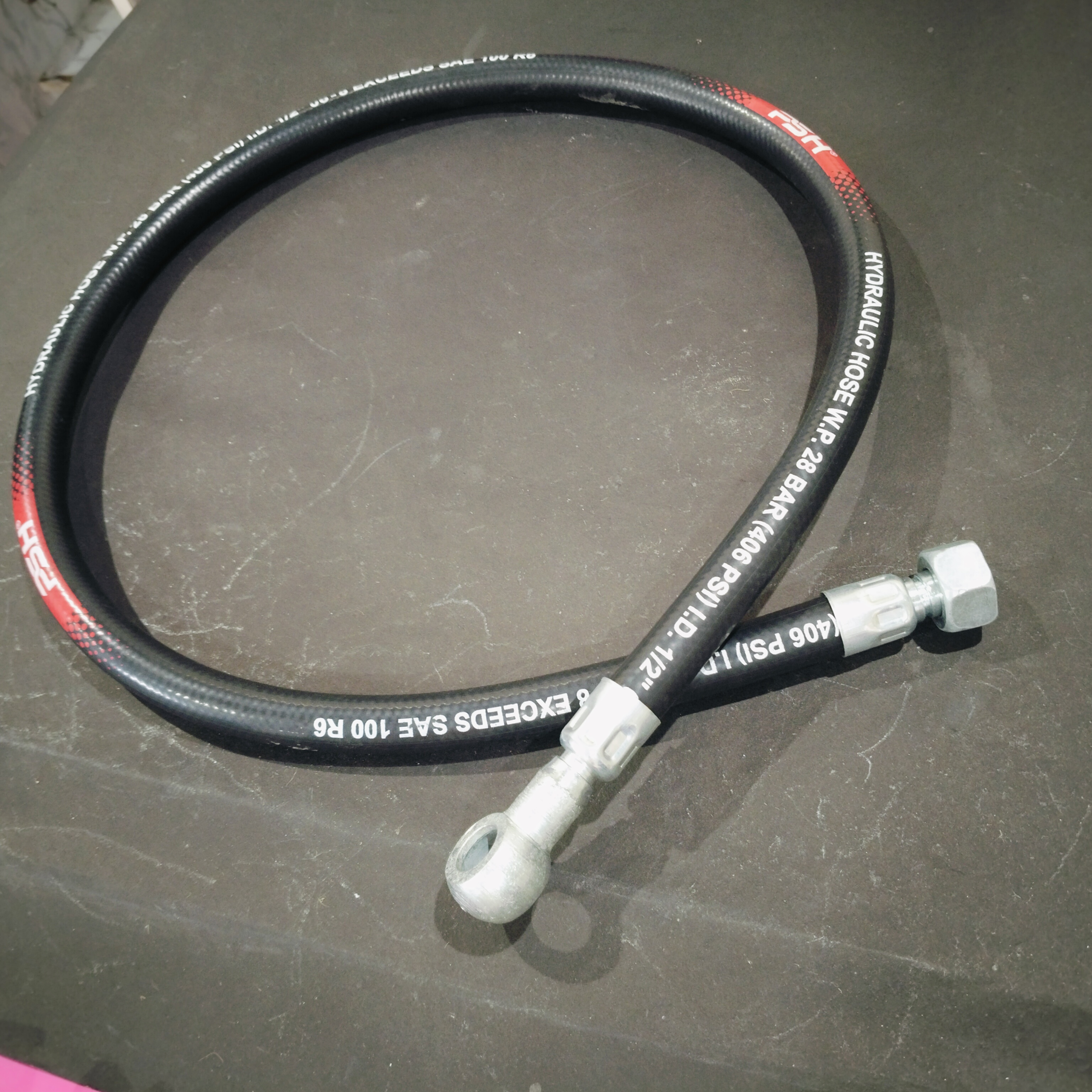

Hydraulic Hoses
